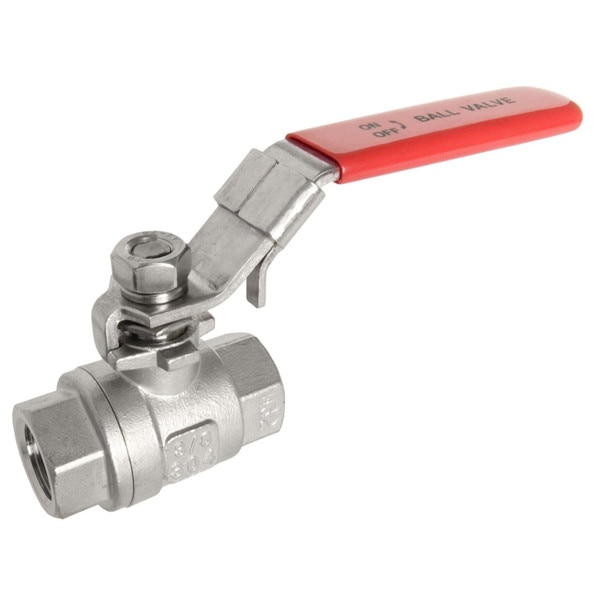

Stainless Steel Ball Valve (SS316) - 2 Piece Full Port w/ Red Handle, 1,000 WOG
• Two-Piece Investment cast body S.S. 316
Stainless Steel 316 Ball Valve Full Port w/ Red Handle 1,000 WOG
Manufacturer: DuraChoice
DESCRIPTION

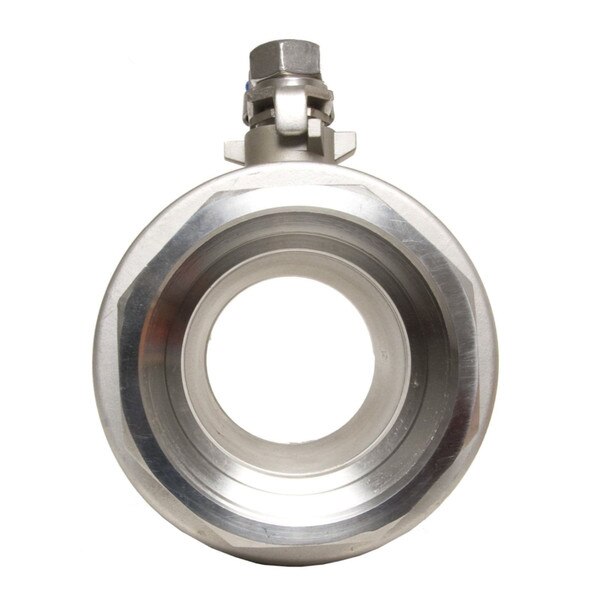

This is the unbranded version of one of the most popular stainless steel 316 valves that we offer. This no-logo version of the DuraChoice full port, two-piece design (VBS02) offers maximum flow to reduce cavitation. This valve works well in virtually all applications up to 1,000 PSI.
|

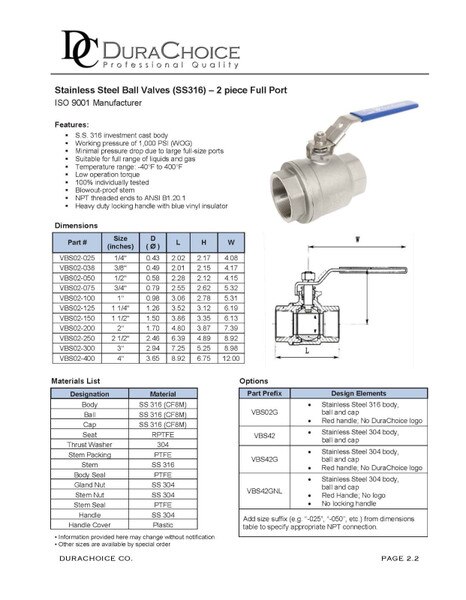

Dimensions | |||||
Part # | Specification | D | L | H | W |
(inches) | |||||
VBS02G-025 | 1/4" | 0.49 | 2.01 | 1.77 | 4.06 |
VBS02G-038 | 3/8" | 0.49 | 2.01 | 1.77 | 4.06 |
VBS02G-050 | 1/2" | 0.59 | 2.48 | 1.81 | 4.06 |
VBS02G-075 | 3/4" | 0.79 | 2.91 | 2.01 | 4.96 |
VBS02G-100 | 1" | 0.98 | 3.39 | 2.56 | 5.67 |
VBS02G-125 | 1 1/4" | 1.26 | 3.86 | 2.72 | 7.44 |
VBS02G-150 | 1 1/2" | 1.5 | 4.17 | 3.35 | 7.44 |
VBS02G-200 | 2" | 1.97 | 4.8 | 3.66 | 7.44 |
Material List: | ||||
Item | Designation | Material | ||
1 | Handle Cover | Plastic | ||
2 | Handle | SS 304 | ||
3 | Gland Nut | SS 304 | ||
4 | Stem Nut | SS 304 | ||
5 | Thrust Washer | SS 304 | ||
6 | Stem Packing | PTFE | ||
7 | Stem Seal | PTFE | ||
8 | Body Seal | PTFE | ||
9 | Cap | SS 316 (CF8M) | ||
10 | Body | SS 316 (CF8M) | ||
11 | Seat | RPTFE | ||
12 | Ball | SS 316 (CF8M) | ||
13 | Stem | SS 316 (CF8M) |
