The valve is used in a variety of industries because of its design and stainless steel makeup. This male by female stainless steel 316 ball valve is perfect for various water, oil, and gas applications.
• Two-Piece Investment cast body S.S. 316• Working Pressure 1,000 PSI (WOG)
• Minimal pressure drop due to large full size ports
• Suitable for full range of liquids and gas
• Temperature range : -40 to 400 degree Fahrenheit
• Low operation torque
• 100% individually tested
• Blowout-proof stem
• FxM NPT Threaded ends to ANSI B1.20.1
• Heavy duty locking handles with blue vinyl insulator

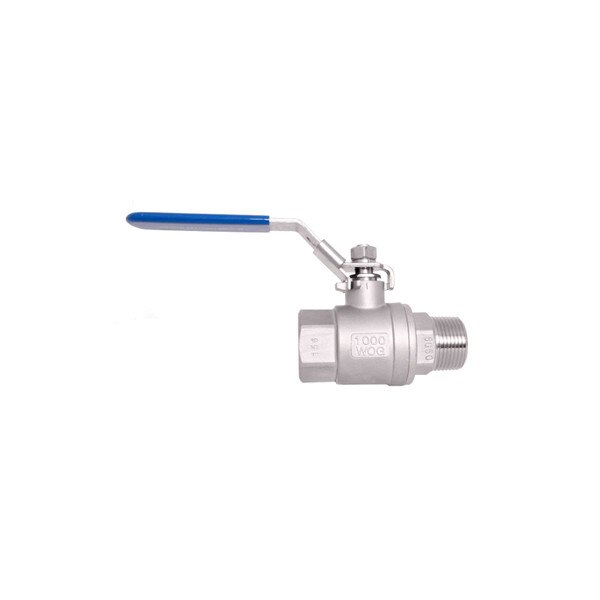

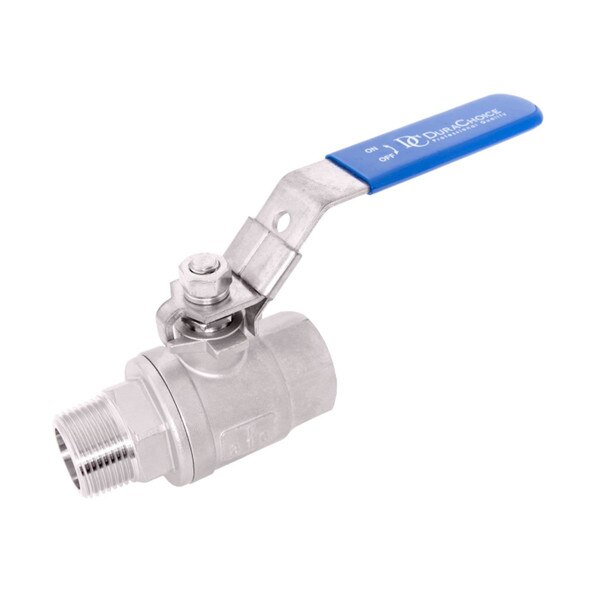

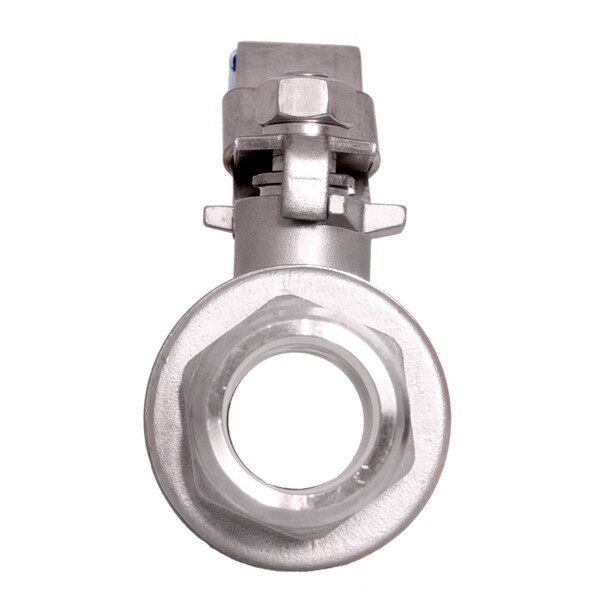

Stainless Steel (316) Ball Valve - 2 Piece Full Port, 1,000 WOG, Male x Female
Manufacturer: DuraChoice
DESCRIPTION
The valve is used in a variety of industries because of its design and stainless steel makeup.
Stainless Steel 316 Ball Valve - Male x Female
The valve is used in a variety of industries because of its design and stainless steel makeup. This male by female stainless steel 316 ball valve is perfect for various water, oil, and gas applications.
- Two-Piece Investment cast body SS316
- Working Pressure 1,000 PSI (WOG)
- Minimal pressure drop due to large full size ports
- Suitable for full range of liquids and gas
- Temperature range : -40 to 400 degree Fahrenheit
- Low operation torque
- 100% individually tested
- Blowout-proof stem
- FxM NPT Threaded ends to ANSI B1.20.1
- Heavy duty locking handles with blue vinyl insulator

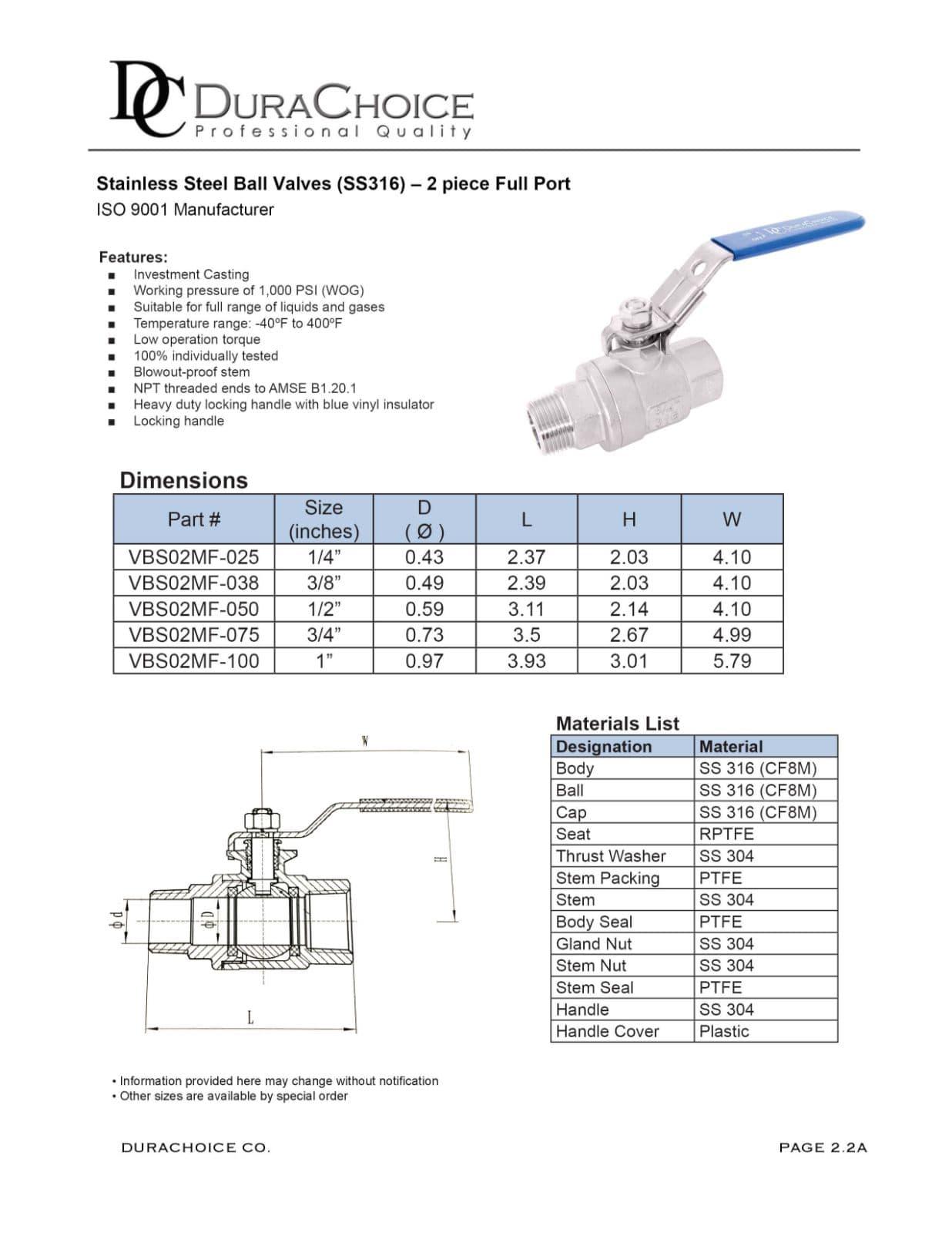

Designation | Material |
Body | SS 316 (CF8M) |
Ball | SS 316 (CF8M) |
Cap | SS 316 (CF8M) |
Seat | RPTFE |
Thrust Washer | 304 |
Stem Packing | PTFE |
Stem | SS 316 |
Body Seal | PTFE |
Gland Nut | SS 304 |
Stem Nut | SS 304 |
Stem Seal | PTFE |
Handle | SS 304 |
Handle Cover | Plastic |
