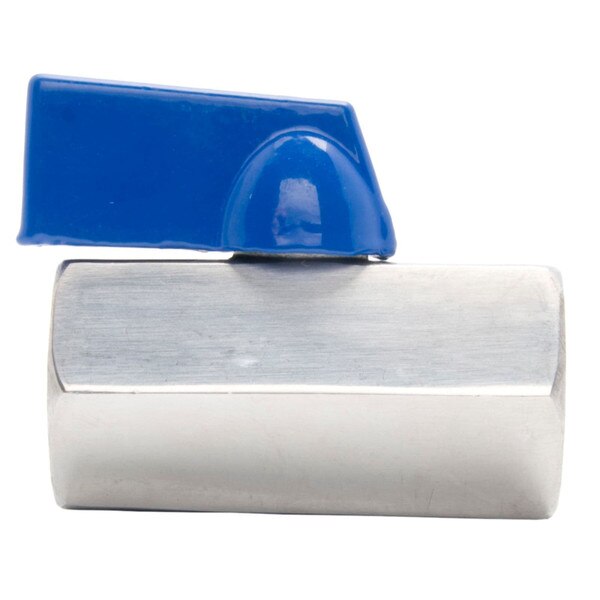

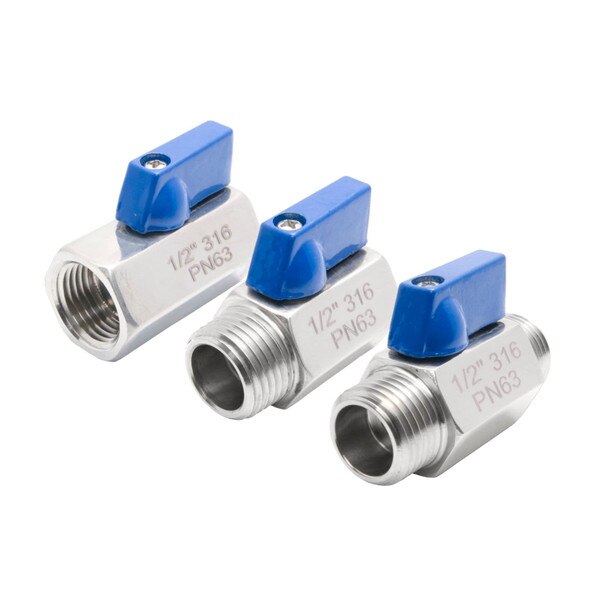

Stainless Steel (316) Mini Ball Valve, 1,000 PSI (WOG)

SKU: VBSM

Manufacturer: DuraChoice

27 Reviews
From: $9.75 to $28.45

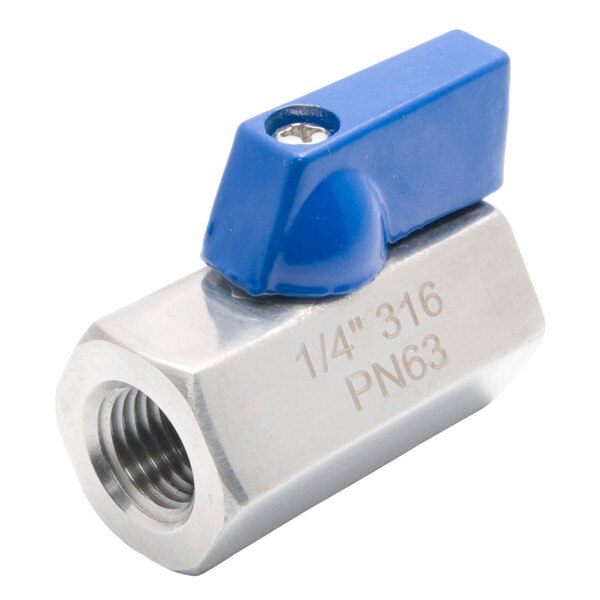

  • VBSM1-025 1/4" Stainless Steel (316) Mini Ball Valve - Female by Female NPT
    Qty. $9.75
  • VBSM1-038 3/8" Stainless Steel (316) Mini Ball Valve - FxF NPT
    Qty. $9.75
  • VBSM1-050 1/2" Stainless Steel (316) Mini Ball Valve - FxF NPT
    Qty. $11.63
  • VBSM1-075 3/4" Stainless Steel (316) Mini Ball Valve - FxF NPT
    Qty. $15.00
  • VBSM1-100 1" Stainless Steel (316) Mini Ball Valve - FxF NPT
    Qty. $19.32

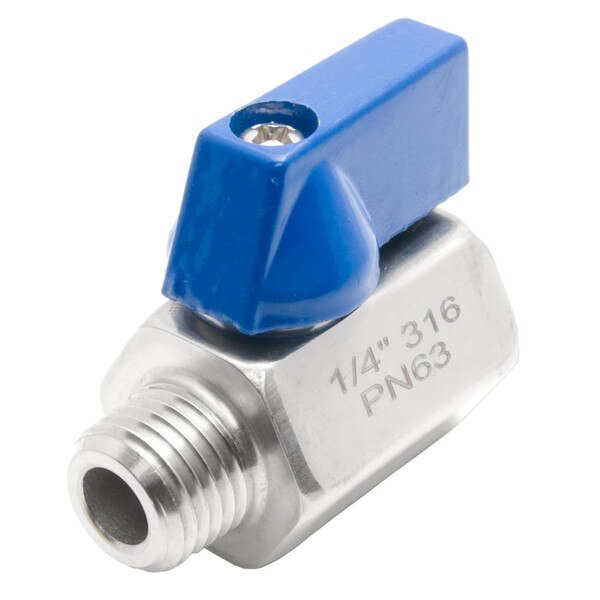

  • VBSM2-025 1/4" Stainless Steel (316) Mini Ball Valve - FxM NPT
    Qty. $10.93
  • VBSM2-038 3/8" Stainless Steel (316) Mini Ball Valve - FxM NPT
    Qty. $10.93
  • VBSM2-050 1/2" Stainless Steel (316) Mini Ball Valve - FxM NPT
    Qty. $13.41
  • VBSM2-075 3/4" Stainless Steel (316) Mini Ball Valve - FxM NPT
    Qty. $18.81
  • VBSM2-100 1" Stainless Steel (316) Mini Ball Valve - FxM NPT
    Qty. $24.16
  • VBSM3-025 1/4" Stainless Steel (316) Mini Ball Valve - MxM NPT
    Qty. $14.76
  • VBSM3-038 3/8" Stainless Steel (316) Mini Ball Valve - MxM NPT
    Qty. $14.76
  • VBSM3-050 1/2" Stainless Steel (316) Mini Ball Valve - Male by Male NPT
    Qty. $18.63
  • VBSM3-075 3/4" Stainless Steel (316) Mini Ball Valve - MxM NPT
    Qty. $24.40
  • VBSM3-100 Stainless Steel (316) Mini Ball Valve - MxM NPT
    Qty. $28.45
Items:0  |  Total:$0.00

DESCRIPTION

Stainless Steel Mini Ball Valves (or miniature ball valves) are made for use in confined spaces. With a pressure rating of 1,000 PSI (water, oil or gas) and made out of SS 316, this line of valves outshines the rest of the mini ball valves available on this site. The valves are available in Female to Female, Male to Female, and Male to Male connection types, and in sizes from 1/4" to 1".



  • S.S. 316 (CF8M) body and ball - for extra strength and corrosion resistance
  • Working on pressure of 1,000 PSI (WOG)
  • Double seal system allows for flow can go in either direction
  • Heavy duty Zinc Alloy handles (painted blue)
  • Fast 1/4 turn open or closed operation
  • Each valve individually tested for maximum safety

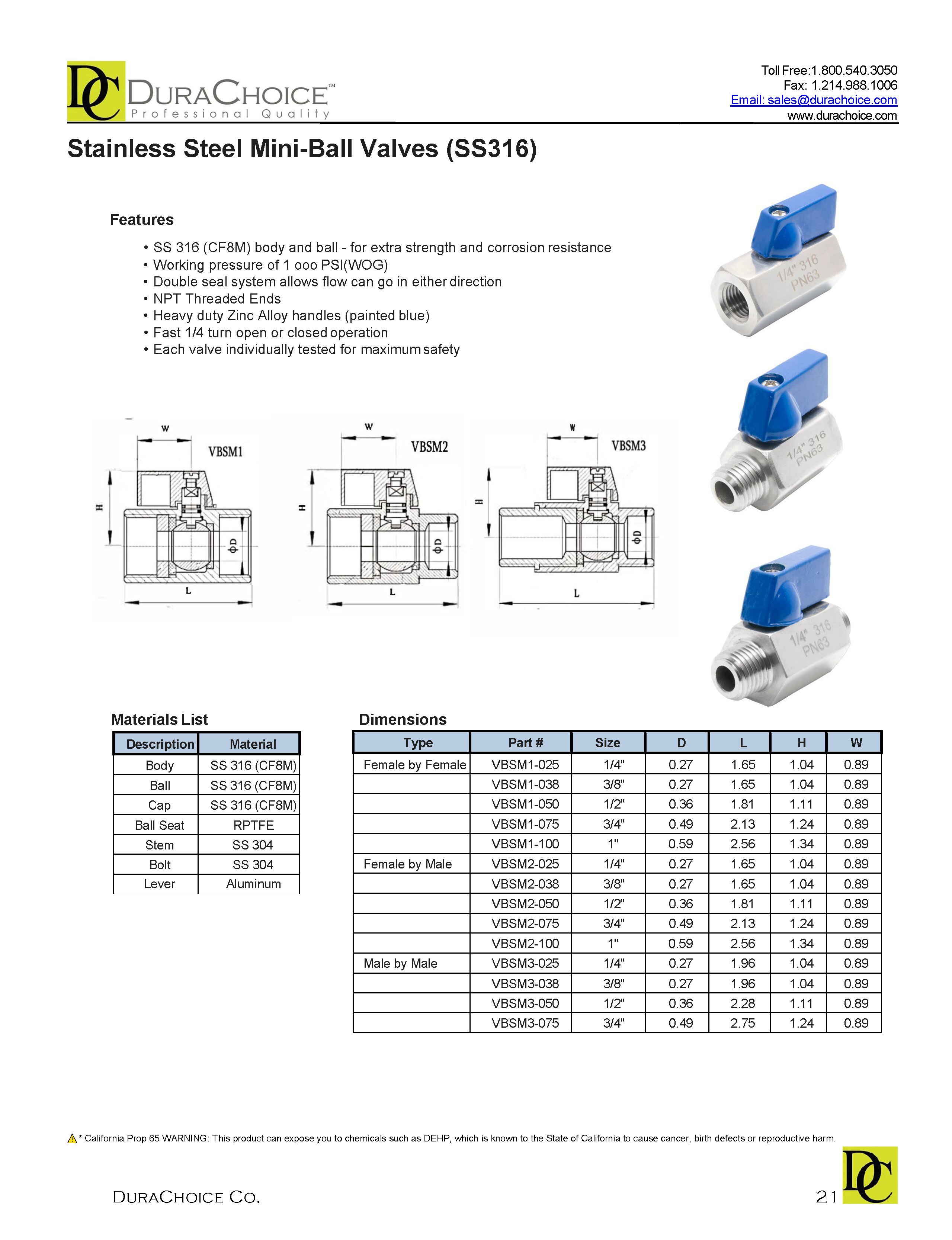

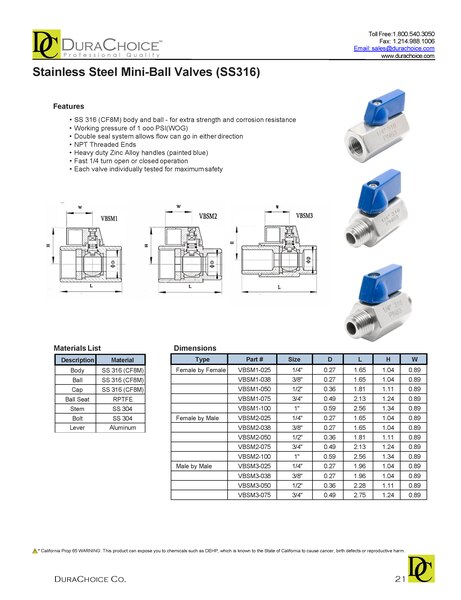

Designation - Material

Body - SS 316 (CF8M)

Ball - SS 316 (CF8M)

Bonnet - SS 316 (CF8M)

Ball Seat - RPTFE

Valve Stem - SS 304/ SS 316

Screw - SS 304

Lever - Aluminum Alloy

O-Ring - NBR/Viton


California Prop 65 Warning: Brass components in this product contain lead, known to the state of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.

Ratings & Reviews

27 reviews

Well built. Would re

by

Well built. Would recommend.

Restricted flow problem

by

While the ball valve seems to be well made, I was disappointed to see that a 1" valve, when fully open, only has about a 9/16" hole for the fluid to pass through. This severely restricts flow.

Great Buy

by

Very well built part. Excellent performance.

Valves were as shown

by

Valves were as shown. Arrived in USPS box in a few days. No problems.

awesome

by

awesome

Fast shipper!

by

Fast shipper!

Will buy again!

by

Fit perfectly in our needs and at a great price and great shipping. Plan on buying more in the future!

Not yet tested, but slight issue

by

Only problem is the male not end which seemed too short to fully screw into a wix 24770 filter base. Now need an adapter to make it work

Excellent product, w

by

Excellent product, was surprised to learn they weren't full port, might have been my mistake for not reading the fine print?

Nice quality made ba

by

Nice quality made ball valves at a good price

Perfect fit and grea

by

Perfect fit and greatly appreciated

Perfect transaction and the items surpassed expectations

by

It was a perfect transaction and the items surpassed expectations.<br>I recommend Direct Materials without reservation.

Better than expected

by

Better than expected

Stainless ball valve

by

Stainless ball valves will be used on chill water system, where humidity is high.

Product came quickly

by

Product came quickly and was as described.

Good product received quickly

by

Mini ball valves that work nicely.

Great price, quick s

by

Great price, quick shipping

Very solid valve for

by

Very solid valve for a great price.Im very satisfied with product

Perfect!. Just what

by

Perfect!. Just what I needed.

Product as describe.

by

Product as describe.

NSF, nice constructi

by

NSF, nice construction.

After I have used th

by

After I have used them for a few months, I will let you know if I will order more of them.

Nice clean threads.

by

Nice clean threads. Also, the handle is coated metal not plastic. Like I thought, from the picture.

high quality, very s

by

high quality, very satisfied

Seem to be of good q

by

Seem to be of good quality, although I have not used them as yet.
